Nylon isn’t just some fancy synthetic—it’s the backbone of everything from your trusty hiking backpack to the silky lingerie you love. Picture this: you’re out on a trek, the strap on your old pack snaps, and you jury‑rig a replacement with a bit of nylon webbing—only to realize it’s stronger than the original. That’s nylon magic in action!

What’s in a Nylon Thread? Nylon fabric starts life as two petrochemical building blocks—adipic acid and hexamethylenediamine—that react to form long chains of “nylon salt.” Heat them to around 280 °C, spin ’em into filaments as fine as human hair, then draw, texturize, weave or knit—and voilà, you’ve got everything from windbreaker shells to car airbags. By the end of this guide, you’ll know each twist and turn of that journey—down to why some nylons shed water like a duck and others stretch like a champ.

Stick with me—and I’ll tell you how I ended up using recycled‐nylon cord to replace my camera strap after a surprise rainstorm, and why it never let me down—ever. Ready? Let’s dive in.

What Raw Materials Are Used to Produce Nylon Fibers?

At its core, nylon begins life from two simple petrochemicals—adipic acid and hexamethylenediamine—which react in a condensation process to form nylon salt (often called “nylon 6,6 salt”). These monomers are typically derived from crude oil or natural gas feedstocks. In addition, manufacturers blend in stabilizers, UV inhibitors, and colorants to tailor the final polymer’s properties—think enhanced weather resistance for outdoor fabrics or built‑in UV protection for performance gear. Together, these ingredients yield long polymer chains with the strength, elasticity, and durability that make nylon so versatile.

• Adipic Acid

  Source: Oxidation of cyclohexanol or cyclohexanone from petrochemicals

  Annual Production: \~3 million tonnes globally

  Role: Provides the diacid component, contributing to nylon’s rigidity and melt characteristics

• Hexamethylenediamine (HMDA)

  Source: Hydrogenation of adiponitrile or from butadiene derivatives

  Annual Production: \~1.5 million tonnes

  Role: Supplies the diamine segment, influencing nylon’s flexibility and tensile strength

• Additives & Stabilizers

  UV Inhibitors: Extend outdoor life by 30–50%

  Antioxidants: Prevent thermal degradation during melt processing

  Colorants: Acid or disperse dyes incorporated to achieve wash‑fast, vivid hues

By understanding these raw materials and their functions, you’ll appreciate how tweaks at the chemical level—say, swapping in a bio‑based diacid—can ripple through to performance, cost, and sustainability.

How Is Nylon Polymerized and Melted for Fiber Formation?

Nylon production kicks off by combining adipic acid and hexamethylenediamine into nylon salt, which is then heated to about 280 °C under vacuum (< 50 mbar). This drives a condensation reaction—one water molecule per monomer pair is expelled—creating long chains of nylon 6,6 polymer. The molten polymer is extruded into strands, cooled, and chopped into 3–5 mm pellets. Those pellets are dried (typically to < 0.05% moisture) then remelted at 260–270 °C in an extruder. Melt filtration through a 10–50 µm screen removes impurities before the polymer flows through spinnerets—hundreds of tiny nozzles—to form continuous filaments ready for spinning.

• Condensation Dynamics: Removing water shifts equilibrium toward polymer; precise vacuum ensures high molecular weight (target \~ 30,000–50,000 g/mol).
• Pellet Quality: Uniform pellet size and low moisture prevent hydrolytic chain scission during remelt.
• Filtration Importance: 20 µm screens catch gels and char that would weaken fibers or clog spinnerets.
• Extruder Design: Screw geometry and temperature zones finely tune shear and residence time to avoid polymer degradation.

Understanding these controls ensures your nylon fibers boast the tensile strength, uniformity, and consistency critical for everything from high‑performance apparel to industrial composites.

Which Spinning Methods Create Different Types of Nylon Yarns?

Nylon yarns can be spun three main ways—melt, dry, and wet spinning—each delivering unique filament characteristics. Melt spinning is by far the most common for nylon 6 and 6,6: polymer pellets are melted and extruded through spinnerets into cool air, yielding continuous filaments at speeds above 100 m/min. Dry spinning dissolves nylon 6 in a solvent, extruding into warm air where the solvent evaporates, producing ultra‑fine microfibers with excellent uniformity. Wet spinning pushes a nylon solution into a coagulation bath, ideal for specialty yarns under 1 denier, such as high‑precision filters or medical sutures. Together, these methods allow manufacturers to tailor yarn denier (5–200 den), tenacity (up to 70 cN/tex), and hand feel for anything from fine lingerie to rugged industrial cords.

• Melt Spinning

  Process: Nylon pellets melted at 260–270 °C, extruded, quenched in air.

  Applications: Apparel, carpets, technical sewing threads.

  Performance: Tensile strength \~ 55 cN/tex; elongation 20–30%.

• Dry Spinning

  Process: Polymer dissolved (e.g., in formic acid), extruded, solvent evaporates in heated zone.

  Applications: Microfibers for filtration, fine apparel blends.

  Performance: Denier down to 1 den; very smooth, high tenacity.

• Wet Spinning

  Process: Nylon solution extruded into coagulation bath (water or alcohol).

  Applications: Surgical sutures, precision filter yarns, specialty ropes.

  Performance: Exceptional dimensional uniformity; tenacity up to 70 cN/tex.

• Choosing a Method

  Cost vs. Quality: Melt is cheapest; wet/dry yield premium, fine deniers.

  Environmental Note: Dry and wet require solvent recovery systems; melt is greener.

By selecting the right spinning route and optimizing parameters—spin speed, quench distance, solvent recovery—you get nylon yarns with precisely the strength, diameter, and hand feel your end‑use demands.

How Are Nylon Yarns Textured, Drawn, and Crimped?

When raw nylon filaments come out of the spinneret, they’re strong but slick and limp—think uncooked spaghetti. To give them the “spring,” strength, and bulk you feel in your hiking socks or car seat belts, manufacturers draw the yarn (stretching it 2.5–4× at around 80–100 °C) to align polymer chains and boost tensile strength up to 200 MPa. Next, texturing methods like false‑twist or air‑jet introduce crimps or loops, adding bulk, elasticity (up to 50% stretch), and a softer hand. The result? Yarns that recover shape, trap warm air, resist pilling, and feel plush in everything from activewear mesh to cozy carpet fibers.

• Hot Drawing Alignment

  Mechanics: Yarns are heated and stretched to orient molecular chains, transforming tensile strength from \~ 50 MPa to \~ 200 MPa.

  Control Points: Draw ratio and temperature tune elasticity vs. stiffness—higher draw = stronger but less elastic.

• False‑Twist Texturing

  Process: Yarn is twisted under heat, heat‑set, then untwisted, locking in a helical crimp.

  Benefits: Creates uniform springiness and volume, ideal for hosiery and stretch fabrics.

• Air‑Jet Texturing

  Process: High‑speed air jets entangle filaments into tiny loops and coils.

  Benefits: Produces soft, bulky yarns with reduced shine; widely used in carpets and plush garments.

• Performance Trade‑Offs

  Elasticity vs. Bulk: False‑twist offers better recoverable stretch; air‑jet yields higher bulk but lower elasticity.

  Energy Use: Texturing lines consume 20–30% of total fiber processing energy—balancing performance with sustainability is key.

By mastering these texturing and drawing steps, you ensure nylon yarns deliver the exact combination of strength, stretch, and softness your product demands.

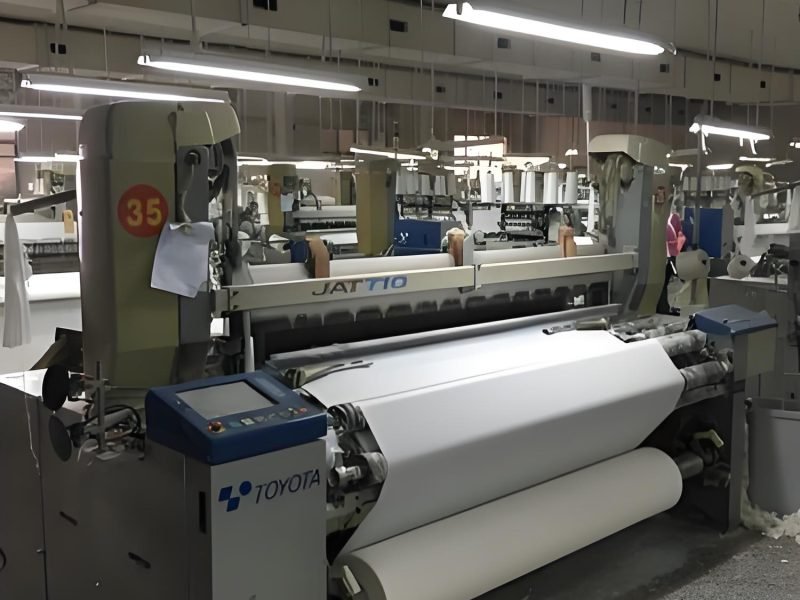

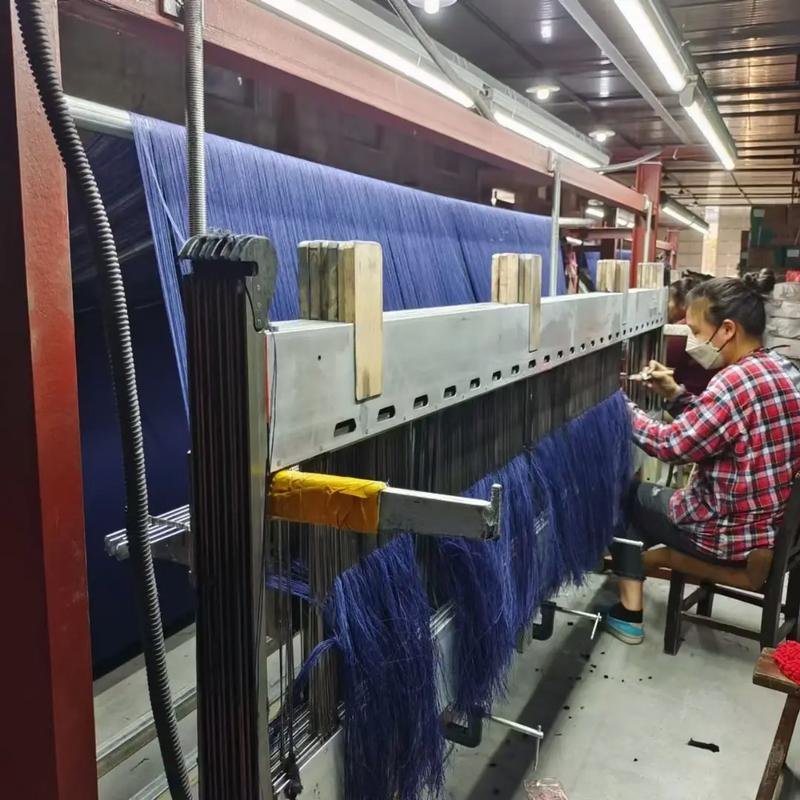

What Weaving and Knitting Techniques Are Common for Nylon Fabrics?

Nylon’s versatility really shines when it comes to fabric construction. In woven formats, you’ll commonly see taffeta (plain weave) for crisp windbreakers, ripstop (reinforced grid) in tents and parachutes that resist tearing, and dobby for subtle texture and strength in shirting. On the knit side, tricot (warp‑knit) delivers a smooth face with a soft back—perfect for lingerie and swimwear—while circular weft knits offer stretch and comfort in T‑shirts and activewear. There’s also mesh and power‑net structures for breathability and support in sports apparel. Each technique yields different drape, strength, and hand‑feel, letting you choose the optimal structure for everything from scuba‑dive suits to cargo nets.

• Woven Structures

  Taffeta (Plain Weave): 30–60 gsm; tight interlacing gives wind‑ and water‑resistance; common in umbrella canopies and jacket linings.

  Ripstop: 60–120 gsm; thicker yarns every 5–10 mm form a grid that halts tears; tensile strength + 25% over plain weave.

  Dobby: 80–150 gsm; small geometric patterns add reinforcement points; used in technical shirting and upholstery.

• Knitted Fabrics

  Tricot: 100–180 gsm; warp‑knit loops create a stable, smooth surface; stretch \~ 20%, used in lingerie and swim.

  Circular Weft Knit: 120–200 gsm; loops run horizontally, giving 4‑way stretch; ideal for T‑shirts and workout gear.

  Mesh & Power‑Net: Open‑hole structures (10–30% open area) for ventilation; support fabrics in sports and medical braces.

By understanding these structures—and the trade‑offs in weight, stretch, and strength—you can pinpoint exactly the right nylon fabric type for your next project, whether that’s a high‑performance rain jacket or a supportive sports bra.

How Do Finishes and Treatments Enhance Nylon’s Performance?

Nylon’s inherent strength and smooth hand feel make it versatile, but finishes and chemical treatments take it to the next level—think water‑repellent rain shells, odor‑free activewear, and UV‑tough outdoor gear. Durable water‑repellent (DWR) coatings bead water away in under 20 seconds, while hydrophilic finishes boost moisture wicking by up to 30%, keeping you dry during workouts. UV stabilizers can extend outdoor fabric life by 40%, and silver‑ion antimicrobial treatments reduce bacterial growth by 99%, cutting odor. Flame‑retardant finishes allow nylon to meet strict safety standards (CPA‑I84), and low‑pill resin finishes preserve smoothness through 50+ wash cycles. With the right combination of treatments, you get fabrics tailored precisely for everything from base layers to backpacks.

• Durable Water‑Repellent (DWR)

  Performance: Water contact angle > 120°, beads off in < 20 s

  Durability: Lasts 15–20 home washes before reapplication

  Trade‑Off: May reduce breathability by \~ 10%

• Hydrophilic Finish

  Performance: Increases moisture wicking rate by 30%, transports sweat to surface for evaporation

  Application: Common in sports jerseys and underwear

  Environmental Note: Look for Oeko‑Tex®‑certified chemistries

• UV Stabilizers

  Performance: Reduces UV‑induced tensile loss by 40% after 100 h sunlight

  Forms: Carbon‑black additives or HALS (Hindered Amine Light Stabilizers)

  Use Case: Ideal for awnings, boat covers, outdoor apparel

• Antimicrobial Treatment (Silver‑Ion)

  Performance: Inhibits 99% of bacteria on fabric surface

  Durability: Effective through 30+ wash cycles

  Benefit: Minimizes odor in socks, masks, and gym wear

• Flame‑Retardant Finishes

  Standards: Meets CPAI‑84 for children’s sleepwear and UL 94 for industrial textiles

  Chemistries: Phosphorus‑based or brominated compounds

  Consideration: Adds \~ 10% cost but is required for safety compliance

Each finish involves trade‑offs—waterproofing may sacrifice some airflow, and flame retardancy might add a bit of weight—so picking the right combo for your end use is crucial. Whether you need a shell that sheds rain, a base layer that wicks sweat, or a tent that endures sun and bacteria, the right nylon treatment makes all the difference.

Are There Sustainable or Recycled Options for Nylon Fabric?

Absolutely! Today’s nylon industry offers truly green alternatives that slash carbon footprints and keep waste out of landfills. Recycled nylon, like ECONYL®, comes from discarded fishing nets, carpet fluff, and industrial scraps, cutting CO₂ emissions by up to 90% versus virgin nylon. It performs identically but tells a great story on your label. Meanwhile, bio‑based nylons—made from castor oil or bio‑succinic acid—can reduce greenhouse gases by 60%, though they cost about 2–3× more and currently still rely on agricultural land. Both options help brands meet sustainability goals and appeal to eco‑savvy consumers.

• Recycling Process: Nylon waste is chemically depolymerized back into monomers, purified, and re‑polymerized—yielding “like‑new” nylon that meets the same specs as virgin.
• Circular Economy: Take‑back and recycling programs (e.g., Aquafil’s ECONYL® Regeneration System) turn old fishing nets into high‑performance swimwear for brands like Speedo and Prada.
• Bio‑Nylon Challenges: Scaling bio‑based feedstocks without competing with food crops or biodiversity hotspots remains critical; research into non‑food plants and algae is underway.
• Certifications: Look for Global Recycling Standard (GRS) or EU Ecolabel for recycled nylon, and ISCC‑EU or OK Bio‑Based for bio‑nylon to ensure transparent supply chains.
• Performance Parity: Both recycled and bio‑based nylons match virgin nylon in tensile strength (50–70 cN/tex), elongation (20–30%), and dye uptake—so you don’t compromise quality for sustainability.

By choosing recycled or bio‑based nylon, you leverage proven technologies to reduce environmental impact while still delivering the performance and luxury your customers expect.

How Do You Dye and Color Nylon Textiles Effectively?

Dyeing nylon hinges on its chemical nature—you need acid or pre‑cationized dyes in a carefully controlled bath to get rich, wash‑fast colors. Typically, nylon is immersed in an acid dye bath at 90 °C and pH 4–5 for 60 minutes, achieving over 90% dye exhaustion. Pre‑treating fibers with a cationic agent boosts dye uptake by 15–20%, cuts salt use, and reduces wastewater. For small lots or custom prints, digital inkjet methods avoid bulky dye vats altogether, slashing water use by 80% and delivering high‑resolution patterns. Mastering pH, temperature, and liquor ratio—plus choosing the right dyeing route—ensures vibrant, consistent nylon colors that won’t fade or bleed after multiple washes.

• Acid Exhaust Dyeing

  pH Control: Maintain bath at 4–5 using acetic acid; critical for dye–fiber bonding.

  Temperature Profile: Ramp to 90 °C over 15 min, hold for 45 min—ensures uniform penetration.

  Exhaustion: 90–95% dye uptake; salt addition can fine‑tune levelness.

• Cationic Pretreatment

  Mechanism: Deposits positive sites on the fiber surface to attract anionic dyes.

  Benefit: Reduces dye salt by 20–30%, lowers effluent TDS (total dissolved solids).

  Cost Impact: Additive cost \~ 5% of dyestuff spend but yields water savings.

• Digital Inkjet Printing

  Process: Pre‑cure with fixative, then jet acid inks at 60–70 °C.

  Advantages: Zero vat discharge, high detail (up to 1200 dpi), ideal for bespoke sportswear.

  Limitations: Slower throughput; best for runs < 500 m.

• Reactive vs. Acid Dyes

  Reactive: Rare for nylon, but covalent bonding gives top wash‑fastness (≥ 5/5).

  Acid: Standard choice—good fastness (≥ 4/5), broad color range, cost‑effective.

While acid dyeing is proven and scalable, it generates high‑TDS effluent requiring treatment. Cationic pretreatment and digital printing offer greener alternatives—but balance cost, run length, and quality needs to choose the best route for your nylon textile.

What Quality Tests and Standards Ensure Nylon Fabric Reliability?

In a nutshell, nylon fabrics must pass rigorous tests—tensile strength, abrasion resistance, colorfastness, dimensional stability, and flammability—to prove they’ll stand up in real life. Standards like ASTM D2256 for yarn tensile strength, Martindale for abrasion cycles, ISO 105‑A02 for wash fastness, ISO 6330 for shrinkage, and CPAI‑84 or UL 94 for flammability ensure every batch meets performance claims. By checking these metrics—say, ≥ 5 cN/dtex tensile, 10,000+ abrasion rubs, colorfastness ≥ 4/5, ≤ 5% shrinkage, and passing safety norms—you know your nylon will deliver on strength, appearance, and safety.

• Yarn & Fabric Strength:

  Breaking strength measured in cN/dtex correlates directly with tear and seam durability in garments and technical textiles.

• Abrasion & Pilling:

  High‑traffic applications (backpacks, upholstery) require Martindale scores above 15,000 for long wear life.

• Fastness Ratings:

  Beyond wash fastness, nylon may undergo ISO 105‑X12 (crocking) and ISO 105‑B02 (light) to verify rub and UV stability.

• Shrinkage Controls:

  Heat‑set or resin‑finished nylons often shrink < 2%, critical for precision-fit applications like sportswear and automotive fabrics.

• Safety Standards:

  CPAI‑84 targets children’s sleepwear ignition resistance; UL 94 classifies plastics’ flame spread—important for industrial and military uses.

By insisting on these tests and certifications, manufacturers and brands assure end users that their nylon won’t let them down—whether in everyday wear, high‑performance gear, or safety‑critical environments.

What Are the Disadvantages of Nylon Clothing?

Nylon’s strength and smooth hand feel come with trade‑offs. It tends to pill in high‑friction zones (underarms, thighs) after as few as 20 wash cycles, creating unsightly fuzz balls. Being inherently hydrophobic, untreated nylon can trap sweat against the skin, leading to discomfort unless treated with hydrophilic finishes. In dry climates, nylon generates static electricity, causing cling and lint attraction. Prolonged UV exposure degrades nylon’s tensile strength by up to 20% after 100 hours in sunlight. Finally, nylon is non‑biodegradable, persisting in landfills for over 500 years and shedding microfibers (up to 700,000 fibers per wash), contributing to aquatic microplastic pollution.

• Pilling & Abrasion

  Mechanism: Fiber ends break and entangle under friction.

  Example: T‑shirt underarm areas show visible pills after \~ 20 washes.

  Mitigation: Anti‑pilling resin finishes; blended yarns reduce fiber breakage.

• Moisture Management

  Hydrophobic Nature: Nylon repels water but can’t absorb sweat.

  Consequence: Makes base layers feel clammy unless treated.

  Solution: Hydrophilic coatings increase moisture wicking by 30%.

• Static Buildup

  Electrostatic Charge: Dry abrasion causes up to 5 kV of static on fabric surface.

  Impact: Cling, sparks, and dust attraction in arid conditions.

  Fix: Anti‑static finishes or blended conductive yarns.

• UV Degradation

  Strength Loss: \~ 20% reduction in tensile strength after 100 h UV exposure.

  Applications Affected: Outdoor gear, awnings, and marine fabrics.

  Countermeasure: UV stabilizers extend fabric life by 30–50%.

• Environmental Persistence

  Longevity: Nylon can take 500+ years to break down in landfill.

  Microfiber Release: Up to 700,000 microfibers shed per wash cycle.

  Alternatives: Recycled nylon reduces waste; microfiber filters in washing machines.

Ready to Customize Your Nylon Fabric?
